Strap cutting machine
[technical features] [download depliant] [video]

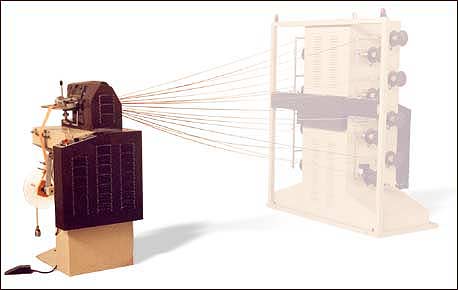

The machine works in connection with the BOM 186 machine allowing the cut and the contemporaneous spooling of materials (leather, synthetic, etc..) that usually have little resistance to traction and that can present problems of spooling when spooled with conventional methods.
The two machines allow to cut and simultaneously spool up to 16 strips.
Main features - TAG 287:
- holder knife shaft assembled on ball bearings
- running with pedal or in continous without intervention of the operator
- adjustable cutting speed
- adjustable knives speed, that follow the cutting speed automatically
- counter for the measurement of the cutted length
- start-stop controls coupled with the spooling machine
- end-material sensor for the stopping of the machine before join
Technical features
| Cutting span .................................. | 150 mm. |
| Cutting speed ................................ | from 5 to 50 meters/minute |
| Mains voltage ................................ | 380 V from 48 to 62Hz (three-phase) |
| Installed power ............................. | 1,5 KW |
| Weight ............................................ | 160 Kg |
| Sizes .............................................. | cm. 60 x 70 x 125H |
